HPE Aruba Networking AP-515 (US) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Ante

(0) 0 Reviews 0 Orders 0 Wish listed

₹48,651.00~~₹49,151.00~~

Quantity :

Total price :

(Tax : )

Overview
Reviews

Key Features

Supports All Mandatory & Several Optional 802.11ax Features.
Unified Wired & Wireless Policy with Dynamic Segmentation.
Includes Bluetooth 5 & Zigbee Radios for Location & IoT Use-Case.
High Performance Dual Radio 802.11ax AP with OFDMA & Multi-User MIMO (MU-MIMO).
Maximum Data Rates of 4.8Gbps in the 5GHz Band & 575Mbps in the 2.4GHz Band (for an Aggregate Peak Data Rate of 5.4Gbps).
Mid-Range 802.11ax 510 Series APs Ideal for High Density Environments, Such as Schools, Retail Branches, Hotels & Enterprise Offices.

Product Specifications

Brand	Aruba
Antenna	AP-514: Four (female) RP-SMA connectors for external dual band antennas (A0 through A3, corresponding with radio chains 0 through 3). Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 1.3dB in 2.4GHz and 1.7dB in 5GHz AP-515: Four integrated dual-band downtilt omnidirectional antennas for 4x4 MIMO with peak antenna gain of 4.2dBi in 2.4GHz and 7.5dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the effective per-antenna pattern is 3.8dBi in 2.4 GHz and 4.6dBi in 5 GHz
Humidity Range	5-93%, Non-Condensing
Model	AP-515

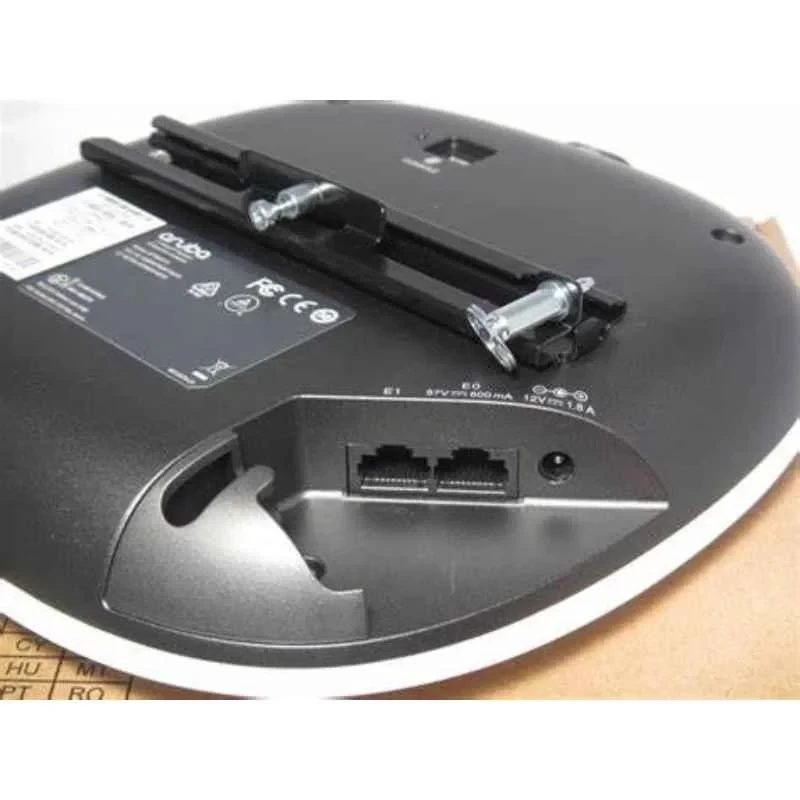

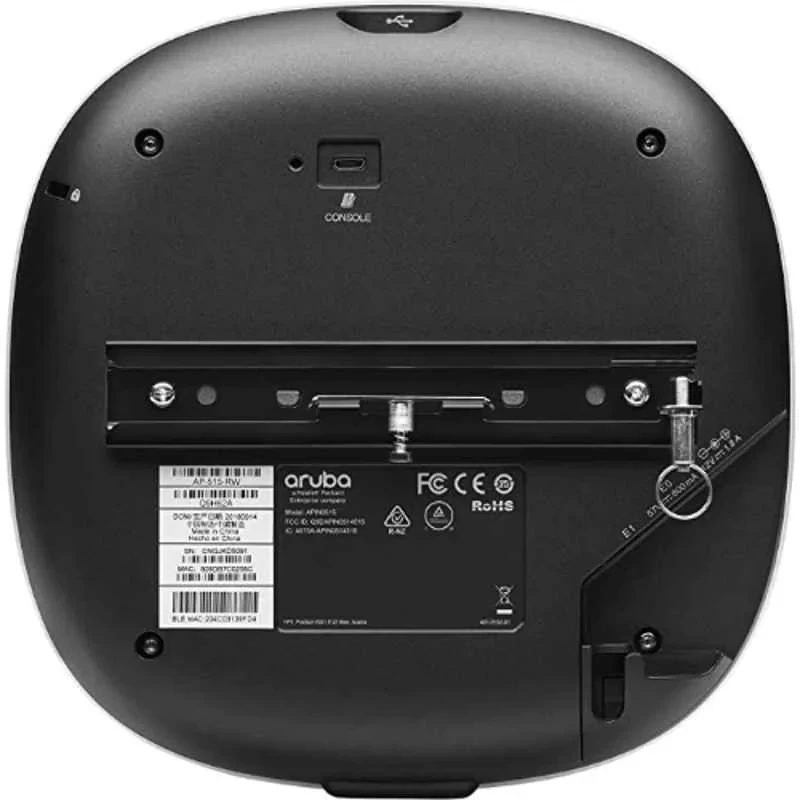

Mounting	A Mounting Bracket has Been Pre-Installed on the Back of the AP. This Bracket is Used to Secure the AP to Any of the (Sold Separately) Mount Kits; see the Ordering Information Section Below for Details
Number of Ports	1xUSB 2.0
Operating Temperature	0 to 50 deg C
Power	The AP Supports Direct DC Power & Power Over Ethernet (PoE; on port E0) When Powered by DC or 802.3at (class 4)/802.3bt (class 5) PoE, the AP will Operate without Restrictions DC Powered: 16.0W PoE Powered (802.3af, IPM Enabled): 13.5W PoE Powered (802.3at/bt): 20.8W Maximum (worst-case) Power Consumption in Idle Mode: 12.6W (POE) or 9.7W (DC) Maximum (worst-case) Power Consumption in Deep-Sleep Mode: 5.9W (POE) or 1.5W (DC)
Radio Frequency	Wi-Fi Radio: AP type: Indoor, dual radio, 5GHz 802.11ax 4x4 MIMO and 2.4 GHz 802.11ax 2x2 MIMO 5GHz Radio 2.4GHz Radio
Storage Temperature	-40 to 70 deg C
Warranty	2 Years
Wireless Type	802.11a
